| Наименование марки: | JIAXIN |
| Номер модели: | H1Z2Z2-K |
| минимальный заказ: | Могущий быть предметом переговоров |
| цена: | negotiable |
| Условия оплаты: | L/C, T/T |
| Возможность поставки: | 100KM/Week |

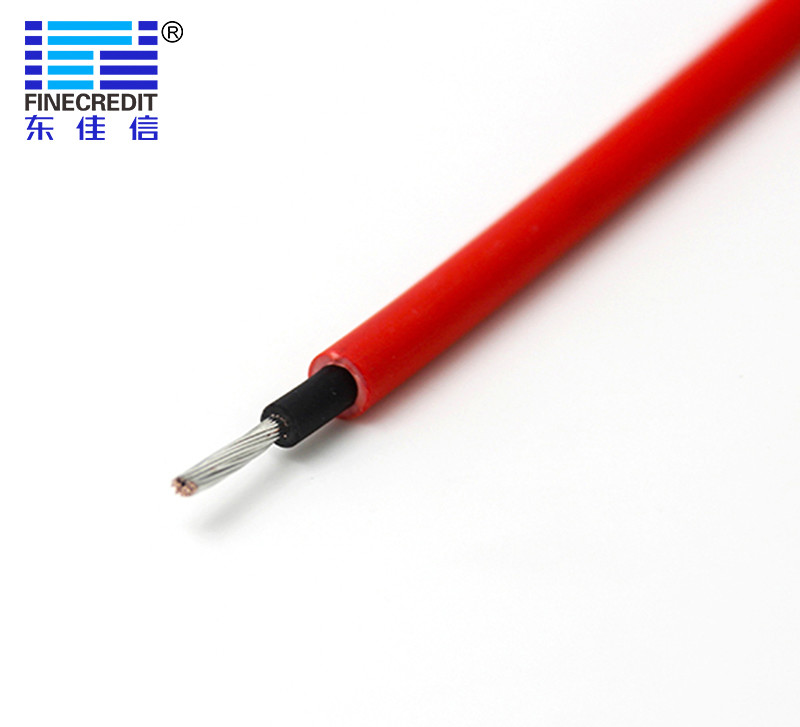

1. Construction
1. Core Conductor: Tinned annealed copper (stranded core)
2. Popular sizes: 2.5/4.0/6.0/10.0/16.0mm²
3. Cable conductor: stranded tinned annealed copper
4. Insulation: electron-beam cross-linked Polyolefin(XLPE)
5. Jacket:XLPE/ PE (black, red)
6. Other specs:
a) Temperature rating: -40C up to +120C
b). Fire performance: IEC 60332-1, UL1581 VW-1
c). Approval: TUV Rheinland 2PfG 1169 1.5mm² to 50mm²
d). High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant
e). Voltage suitable: 600-1000V
2. Application
Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment.For use at the direct current (d.c.) side of photovoltaic systems, with a nominal d.c. voltage of 1,5 kV between conductors and between conductor and earth.
3. Advantage
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc
4. Technical parameter
| section of conductor(mm²) | Conductor stracture | Insulation thickness(mm) | Sheath thickness(mm) | Approx.cable diameter | Max resistance of conductor at 20℃ (Ω/km) | Max resistance of conductor at 20℃ (Ω/km) |
| 1.5 | 30 | 0.7 | 0.8 | 4.7 | 13.7 | 860 |
| 2.5 | 49 | 0.7 | 0.8 | 5.2 | 8.21 | 690 |
| 4 | 77 | 0.7 | 0.8 | 5.6 | 5.09 | 580 |
| 6 | 119 | 0.7 | 0.8 | 6.3 | 3.39 | 500 |
| 10 | 7×11 | 0.7 | 0.8 | 7.5 | 1.95 | 420 |
| 16 | 7×17 | 0.7 | 0.8 | 8.8 | 1.24 | 340 |
Testing process
service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Product warranty period is 2 years.
5. We guarantee solve your problems within 24 hours in Shenzhen, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
